QSMOTORSVMC72150 V1 Controller for 2000W-3000W Electric Bicycle and Scooter Motor Brushless DC Controller with Adapter
Description
⚙️ Power Up Your Ride with Precision!
- UNLEASH YOUR RIDE - Designed specifically for QS brushless DC motors, ensuring optimal performance.

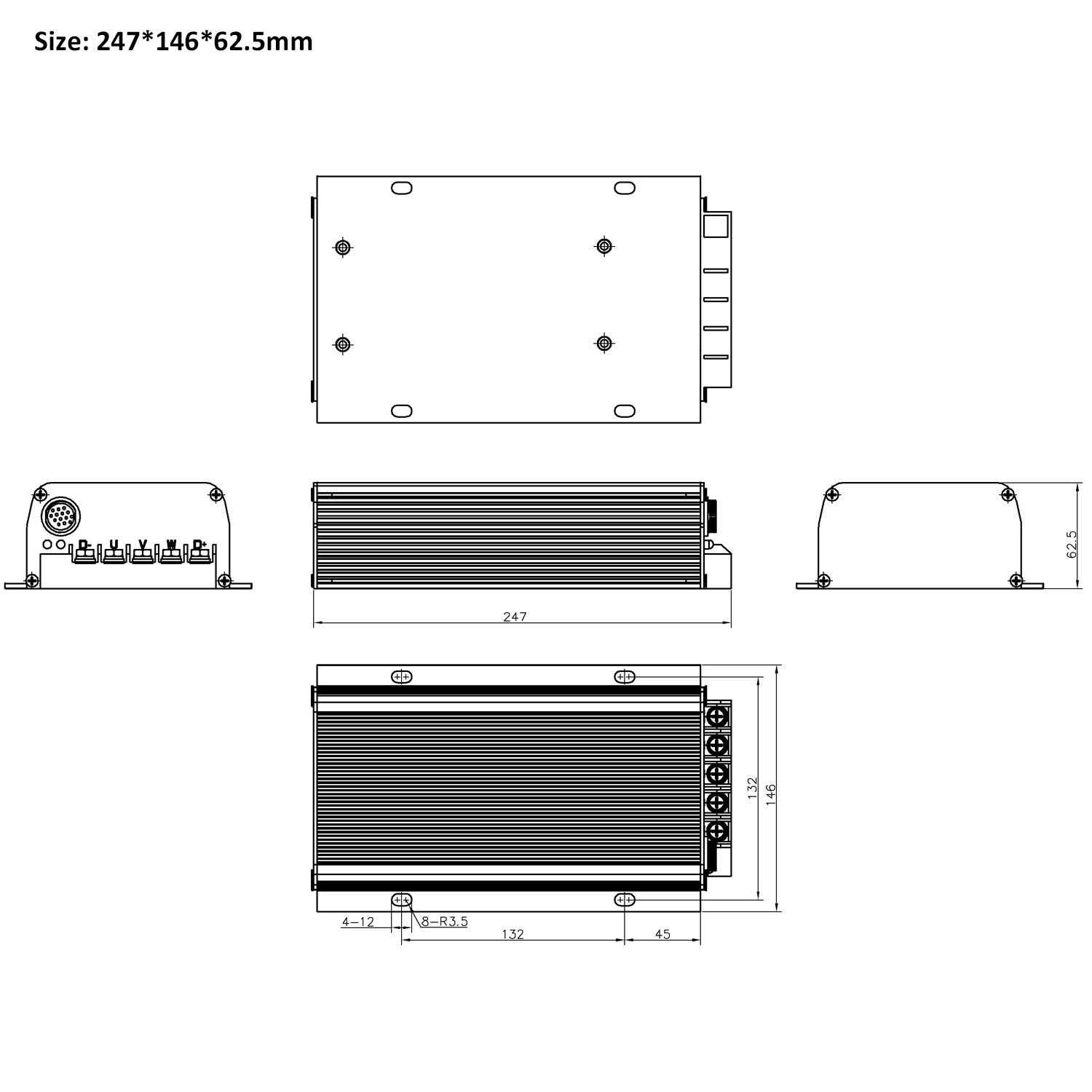

- COMPACT EFFICIENT - Sleek dimensions (247mm x 146mm x 62.5mm) make it easy to integrate into your e-bike or scooter.

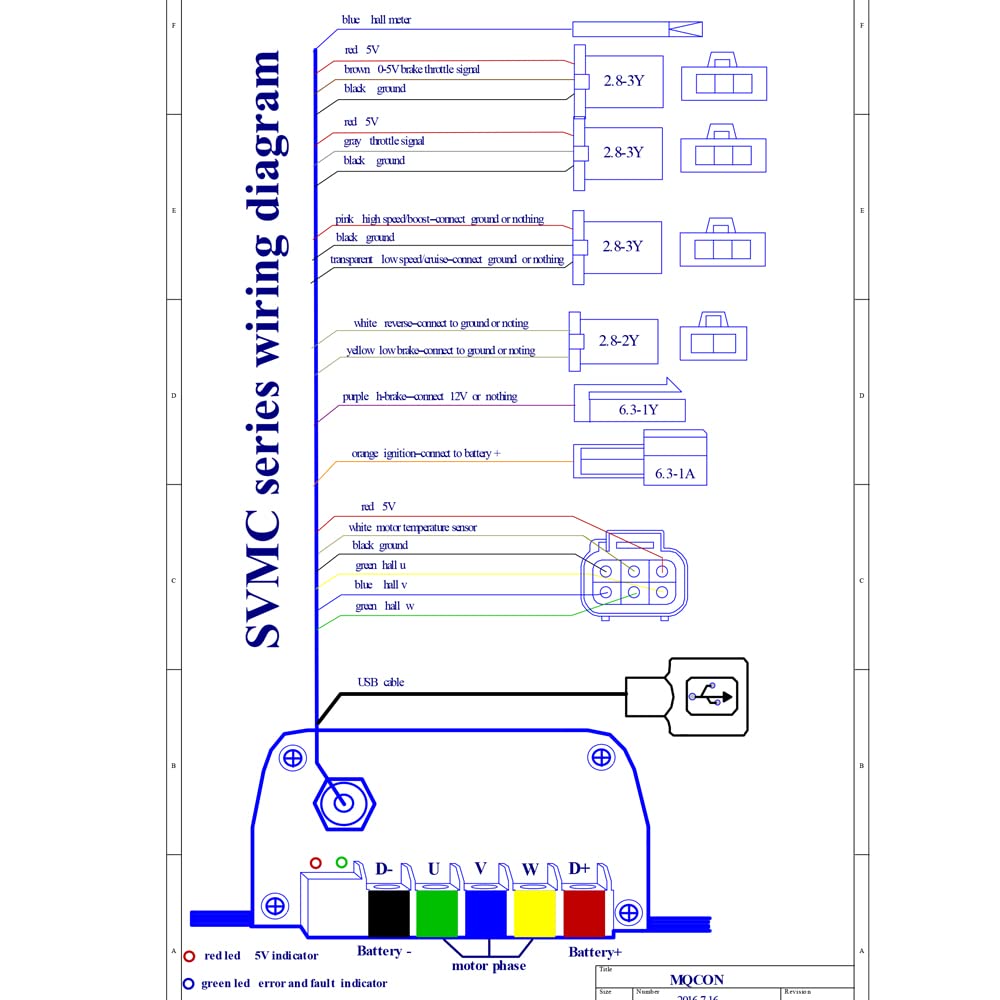

- SMART FUNCTIONALITY - Equipped with features like Hall, Throttle, Electric Lock, and more for a seamless experience.
- ROBUST CURRENT HANDLING - Handles up to 100A DC current limit and 260A max phase current for powerful acceleration.
- VERSATILE VOLTAGE RANGE - Compatible with battery voltages from 24V to 72V, accommodating various setups.
The QSMOTORSVMC72150 V1 Controller is engineered for high-performance electric bicycles and scooters, supporting QS brushless DC motors with a power range of 2000W-3000W. It features a versatile voltage range of 24V-72V, robust current handling capabilities, and smart functionalities, all packed in a compact design for easy integration.
Specifications
| Item Package Dimensions L x W x H | 12.52 x 8.19 x 4.41 inches |
| Package Weight | 2.12 Kilograms |
| Item Dimensions LxWxH | 9.72 x 5.75 x 2.44 inches |
| Brand Name | QSMOTOR |
| Manufacturer | Quanshun Motor |
| Size | 247mm*146mm*62.5mm |
Have a Question? See What Others Asked
Reviews
B**N
Nice controller! Handles my MXUS 3000W hub motor just fine, smooth and quiet.
It was pretty easy to install, it's basically a Sabvoton controller. I used an MXUS-3000w hub motor on my eGo scooter. I had a trapezoidal controller on it but it made too much noise at low speed, the Sinewave controller made it nice and quiet. The PC program works but the UI (User Interface) is clunky, I would gladly rewrite it for them. I haven't tried out the Android app yet, looks better than the PC app (at least on paper). The PC did connect right up first try, I was using an older laptop with Win 7. The documentation was sufficient but could benefit from a systems diagram. The documentation also needs to be proofed by someone in the United States. I will update after I find tune the controller parameters. :>)Update 8-5-2019 - Controller is working great! I switched to the IOS app to update parameters and it is way better.
A**W
Good for a month
Controller worked great for the first month nearly everything is adjustable afterwards it died and will not out put to the bluetooth transmitter or pc cable.
J**3
wonderful
Perfect
K**E
Product DOA. Waste of money.
This is the only picture I have- a Sample as to the shape of the connections upon arrival. No biggie. I run a bicycle shop, have the tools and supplies plus the enthusiasm to correct the problem and enjoy myself while doing it.Put it all together and---- nothing. Several frustrating hours later I conclude the 5v rail was faulted. Throttle cannot function off of <2volts.Huge investment. Waited over a month for it. So disappointed and pissed.Definitely dissatisfied to the fullest.Hope this saves someone the trouble.
F**
Run away. Don’t buy
Junk. They do not honor their warranty ever since Sia bought the company
