TAILONZ PNEUMATIC1/4”BSP Automatic Reset Type Push Button 5 Way 2 Position Pneumatic Control Mechanical Valve
Details
- MaterialAluminium
- BrandTAILONZ
- Inlet connection typeFemale British
- Outlet connection typeBSPT
- Maximum operating pressure116 Pound per
- Number of ports5
Description
🔴 Push Precision, Power Performance.
- SEAMLESS INTEGRATION - Standard 1/4" BSP ports and included fittings allow effortless connection to 6mm or 1/4" tubing—no adapters needed.
- LIGHTWEIGHT YET DURABLE - Aluminum construction offers robust performance at just 240g, combining strength with portability.
- PRECISION PNEUMATIC MASTERY - 5-way 2-position design delivers versatile and accurate airflow management for complex systems.
- BUILT TO PERFORM UNDER PRESSURE - Operates smoothly within 0.17-0.8MPa and withstands temperatures from 0 to 60°C, perfect for demanding environments.

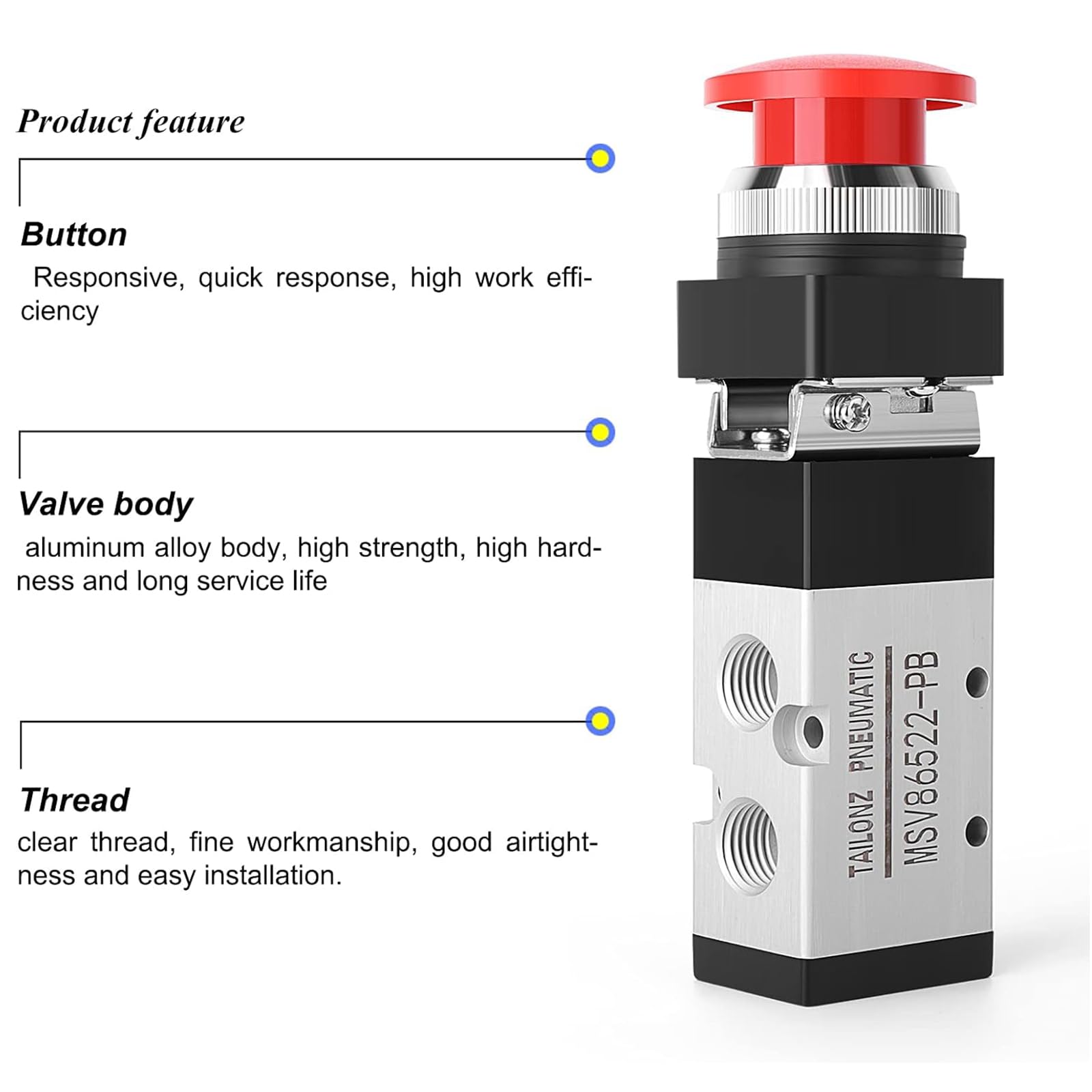

- INSTANT CONTROL AT YOUR FINGERTIPS - Red latching mushroom push button ensures quick, reliable valve actuation every time.
The 1/4” BSP Automatic Reset Push Button Pneumatic Valve by TAILONZ PNEUMATIC features a red mushroom-style actuator for quick valve control, 5-way 2-position airflow management, and standard BSP ports for easy tube connection. Designed for pressures up to 0.8MPa and temperatures up to 60°C, its lightweight aluminum build ensures durability and reliability in professional pneumatic systems.
Specifications
| Manufacturer | TAILONZ PNEUMATIC |
| Part Number | OZ-296 |
| Package Dimensions | 15.8 x 10.5 x 4.5 cm; 240 g |
| Item model number | OZ-296 |
| Size | 5 Way 2 Position |
| Colour | Aluminum |
| Style | 1/4" BSP Auto Reset Type Push Button |
| Material | Aluminium |
| Maximum Pressure | 116 Pound per Square Inch |
| Certification | CSA |
| Batteries included? | No |
| Batteries Required? | No |
| Item Weight | 240 g |
Reviews
P**R
Excellent value
Includes two 6mm fittings, a silencer for the return and thread sealing tape.I know places that would charge you this price just for the fittings let alone a 3/2 valve and the actuator.
R**N
Push to engage only
This valve/switch is a simple push to pressurise and release the button allowing the air to escape from the cylinder only which would need gravity or spring assist to return the setup to the start position it’s not a 3 way as described in the description, apart from that the valve works perfectly well with a good flow rate and slower release, if that’s what you want then this is a well made valve and a very inexpensive quality solution,
